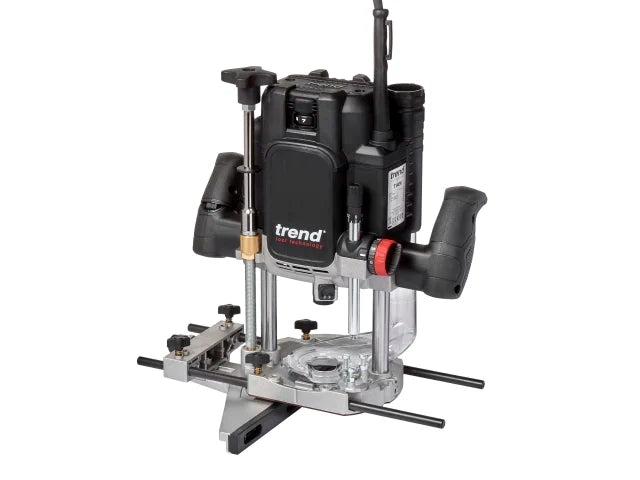

Trend T14EK Variable Speed 1/4in Router 2300W 240V

The Trend T14EK Variable Speed Router is a high-performance plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts. Perfect for handheld and Router Table use. Router table cam-lock quick-release mounts make mounting and unmounting the router quick and easy. Its powerful motor delivers consistently high power, torque and speed, and features soft-start to prevent kick-back. With 7-level variable speed control, it gives the user total control across a range of cutters, materials, and applications.

Automatic power shut-off prevents the router from accidental start-up if the trigger lock-on switch is engaged and the power supply is lost and restored or interrupted. A router table safety switch bypasses the Automatic Power Shut Off feature and replaces the need for a typical NVR (No Volt Release) switch. An integrated Power Trigger prevents accidental movement and kick-back when turning the router on and off.

The 2-in-1 Plunge and Router Table Height Adjuster (supplied) can be used from above and below the router, in both table and handheld mode. Each 360° turn gives a 1.5mm adjustment. Trend Base Configuration features a unique precision guide bush centring device to ensure perfect concentricity between cutter and collet for pinpoint accuracy when used with Trend routing jigs.

Fitted with ergonomic inclined handles that support a natural wrist position, reduce strain, and increase control when routing with arms outstretched. Trend Base Configuration includes a standardised fixing pattern of holes that allow routers to be attached to a range of compatible tables, jigs and accessories. An integrated router rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents.

Top-Mount Cyclone Extraction with enhanced dust adaptor efficiently clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’. Automatic LED work lights allow users to accurately position the cutter prior to engaging the material and making costly errors in low-light situations.

Supplied with: 1 x Side Fence, 1 x Guide Bush Plate, 1 x Collet, 1 x Guide Bush Pin, 1 x Top-mount Extraction Adaptor, 1 x 30mm Guide Bush, 1 x Cyclone Dust Adaptor, 1 x 22mm Spanner, 1 x Power Switch, 1 x 2-in-1 Height Adjuster and 1 x Blow Moulded Case.

Specifications:

Standard Collet Diameter: 1/2in.
Input Power: 2,300W.
No Load Speed: 9,000-22,000/min.
Plunge Stroke: 0-80mm.
Max. Cutter Diameter: 50mm (handheld).
Guide Bush Ø: 30mm.
Dust Spout Size ID: 35mm.
Rod Ø x Length: 10 x 360mm.
Rod Centres: 100mm.
Base Aperture Size: 70mm.
Weight: 6.5kg.
