Lindstrom Supreme Diagonal Cutting Micro Bevel Cut Tapered Head Nipper 109mm
Lindstrom Supreme Diagonal Cutting Micro Bevel Cut Tapered Head Nipper 109mm
Hurry up, only 2 items left in stock.
-
Delivery between Mon 27th Oct – Tue 28th Oct

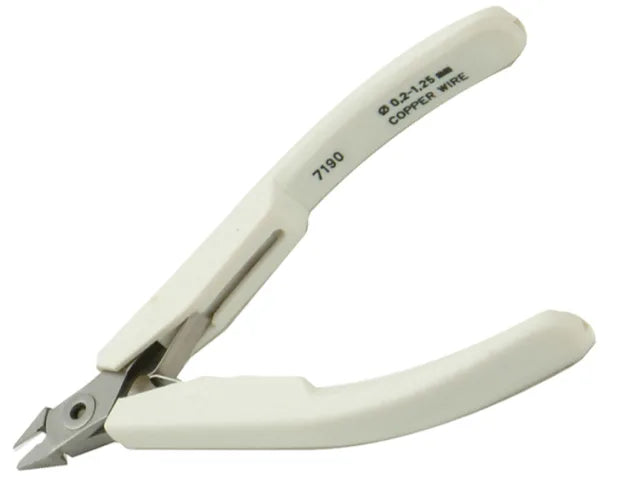

The Lindstrom Supreme Oblique Cutting Nipper produced from high performance tool steel. It has a screw joint that minimises friction and alignment of cutting edges.
The edges are precision induction hardened to 58-60 HRC. The handles with return spring and sleeved.

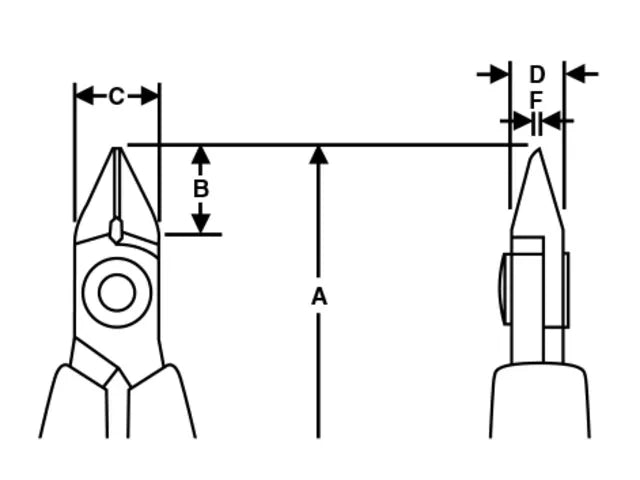

Length (A): 109mm (4.29 in).
Blade length (B): 9mm (0.35 in).
Head width (C): 9mm (0.35 in).
Head depth (D): 6mm (0.24 in).
Tip width: (F): 1.0mm (0.04 in).
Cutting capacity: 0.2-1.25mm.
Head type: Tapered
Cutting edge: Micro-bevel.

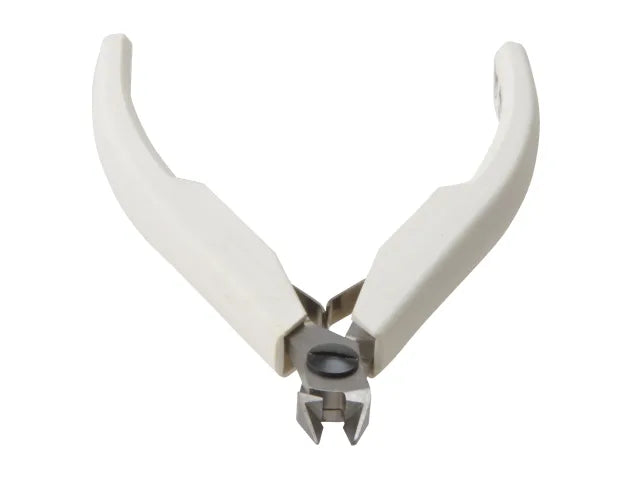

The tapered head is the smallest of the standard cutting heads available. Not only does it taper on both sides, but also the underside is cut away, allowing the operater to gain access into some difficult areas.

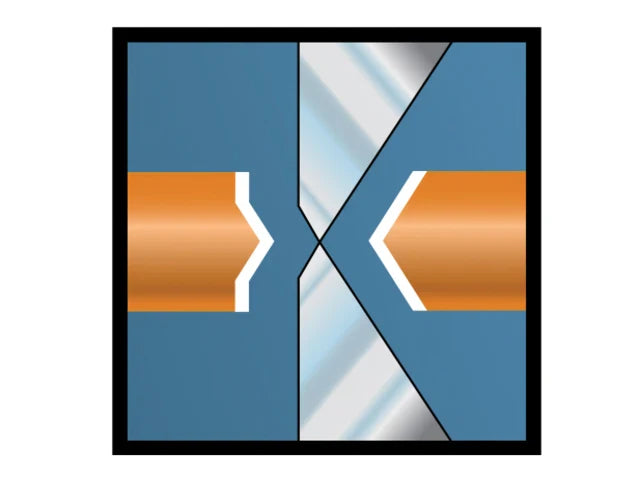

The Micro-Bevel cut is designed to meet the requirements of the electronic assembly industry. Leads are pinched, allowing less altitude and a smaller overall surface area. Because of its design, it has a wide cutting range and variety of uses.
